Increase Java heap space for CI

 Product: Custodial Integrator Version: 3.4

Summary

Use this topic to increase the Java heap space (Java memory) for the CI application.

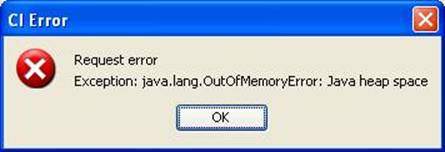

You may need to increase Java heap space for a variety of reasons. For example, when importing data in Custodial Integrator, the import may partially complete before you see this error:


Steps

Use these steps to increase the memory size for CI, by editing the runCI.bat file used to start CI.

  1. Close out of Custodial Integrator.

  2. Locate the runCI.bat file. It is typically in:

    C:\Program Files\Custodial Integrator\runCI.bat

  3. Right click on the runCI.bat file and select Edit.

  4. Immediately after java, add a space and then add –Xmx<size> where <size> is any value equal to or greater than 96m. So for example, the line might begin with:

    java –Xmx512m

  5. Save the file and restart Custodial Integrator.
  6. If the error message appears again, repeat these steps but increase the size of <size> -Xmx<size>.
